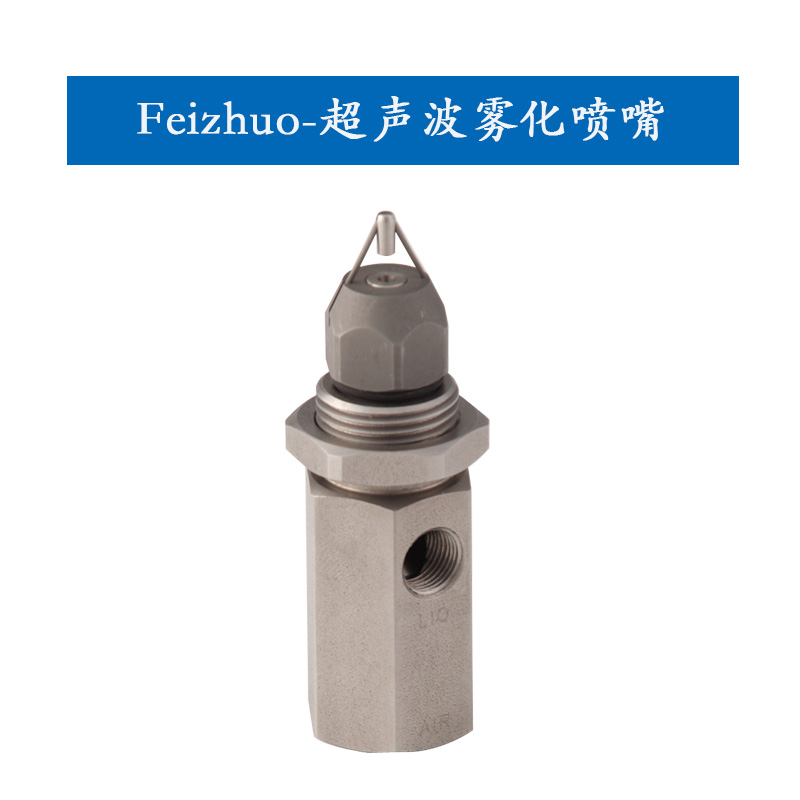

超声波雾化喷嘴

国内起初自动化超声波喷涂设备，采用发明专利的超声波喷头技术，可提供均匀有效的薄膜喷涂及喷雾热解，膜厚可达几十纳米。适用于薄膜太阳能电池、燃料电池、半导体光刻胶、电子传感器、PCB助焊剂、无纺布功能涂层、玻璃镀膜等多种纳米及亚微米级薄膜制备。

超声波喷嘴的用途：

干雾降尘；

喷雾加湿；

干雾降尘系统；

薄膜喷涂及喷雾热解；

超声波雾化喷嘴的构造：

内超声波雾化喷嘴属雾化喷嘴,它由进油管(1),进气管(2),超声波发生器(3),共振腔(4)及喷头(6)所组成。利用超声波发生器与共振腔作用产生高频超声波,将油料雾化成细小油珠,与气体混合由喷头的喷油孔喷入锅炉内,从而既保证了高的雾化质量。

性能参数

Ultrasonic nozzle USES:

Dry fog dust;

Spray humidification;

Dry fog dust system;

Thin film coating and spray pyrolysis

The structure of the ultrasonic atomizationnozzle:

In ultrasonic atomization nozzle atomizer nozzle,it consists of inlet pipe

(1), air inlet pipe

(3) ultrasonic generator,cavity

the ultrasonic generator and the cavity effect produce high-frequency

high-energy ultrasound, fuel atomization into tiny oil bead, mixed with gas

from the nozzle spray hole is sprayed into the boiler at a certain Angle, which

not only ensure the high quality of atomization.

Domestic exclusive automatic ultrasonic spraying

equipment, the use of a patent for invention of ultrasonic nozzle technology,

can provide efficient thin film coating and spray pyrolysis, the most thin film

thickness can be up to tens of nanometers.Suitable

for thin film solar cells, fuel cells, semiconductor lithography glue,

electronic sensors, PCB flux, non-woven fabric coating, glass coating and so on

the many kinds of nanometer and submicron level membrane preparation.
